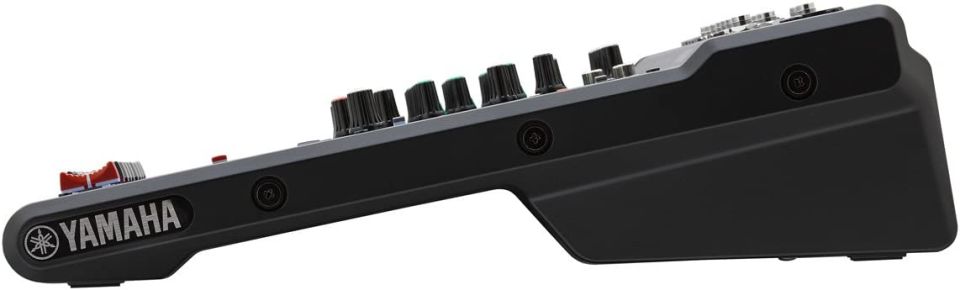

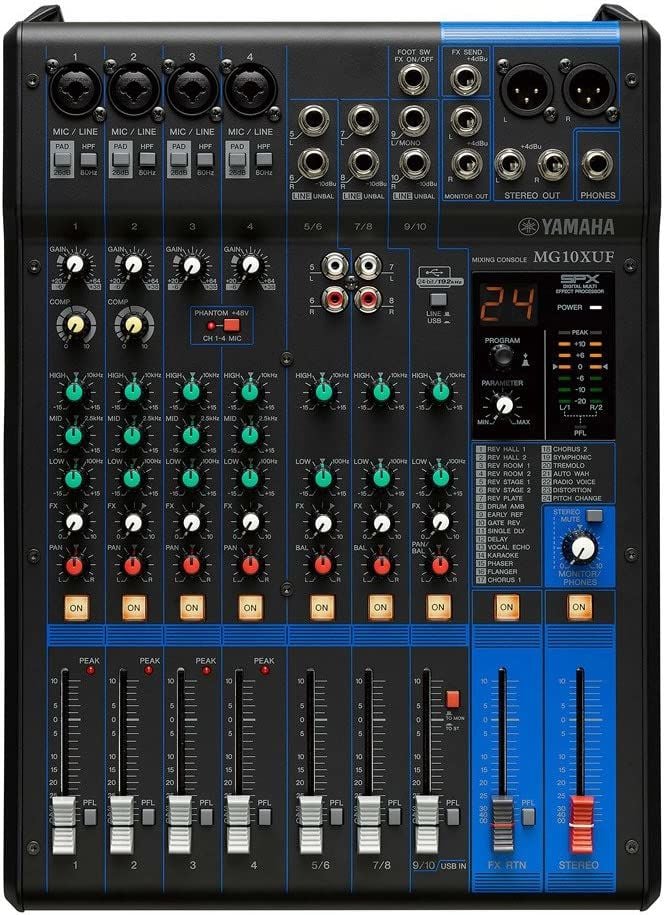

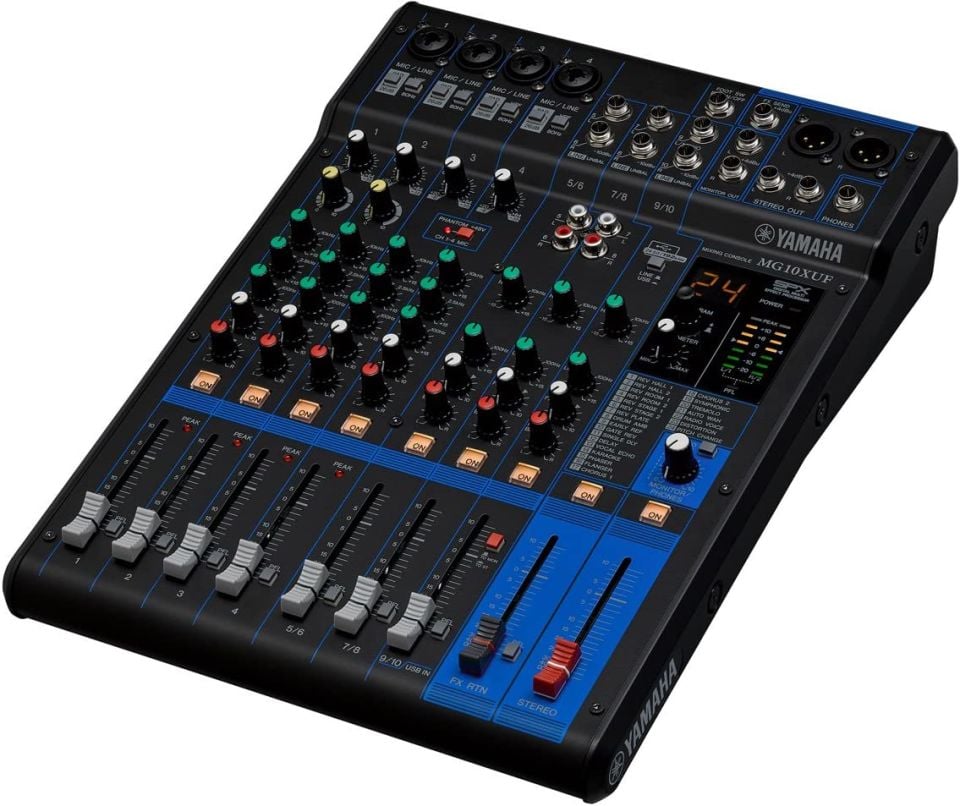

Yamaha MG10XUF USB Mixer
Stok Kodu
MG10XUF
Kategori
%30
indirim
32.183,45 TL
21.402,00 TL
(Havale Fiyatı)
Kredi Kartı Fiyatı :
22.528,42 TL
2.121,43 TL'den Başlayan taksitler ile..
1 x Yamaha MG10XUF Analog Mixer
1 x AC Adapter
1 x Cubase AI Download Information
1 x Owner's Manual
1 x Technical Specifications Sheet
Features
Discrete Class-A mic preamps
High quality sound op-amp
Switchable phantom power & PAD switch
1-knob compressors
AUX input
EQ & high-pass filters
Variety of input & output connectors
LED level metering
Built-in SPX digital effects
Metal chassis
Includes Cubase AI downloadable software
Specifications
Input Channels
Mono: 4 x Mic/Line
Stereo: 3 x Line
Output Channels
Stereo Out: 2
Monitor Out: 1
Headphone Output: 1
AUX Send: 1
Bus:
1 x Stereo
1 x Aux (FX)
On-Board Effects: 24 x SPX Algorithms Effects
Phantom Power: +48V
USB Interface: USB 2.0, 24-Bit/192kHz
PAD: 26dB (Mono)
HPF: 80Hz, 12dB/oct (Mono)
Compressor
Threshold: +22dBu to -8dBu
Ratio: 1:1 to 4:1
Output Level: 0dB to 7dB
Attack Time: Approx. 25msec
Release Time: Approx. 300msec
EQ:
High: 10kHz Shelving (+15dB/-15dB Gain)
Mid: 2.5kHz Peaking (+15dB/-15dB Gain)
Low: 100Hz Shelving (+15dB/-15dB Gain)
Peak LED: LED Turns On When Post EQ Signal Reaches 3dB Below Clipping
Level Metre: 2 x 7-Segment LED Metre (Peak, +10dB, +6dB, 0dB, -6dB, -10dB, -20dB)
Crosstalk: -83 dB
Power Requirements: PA-10 (AC 38 VCT, 0.62A, Cable Length = 3.6m)
Power Consumption: 22.9W
Dimensions
Height: 110mm
Width: 275mm
Depth: 390mm
Weight: 2.1kg
